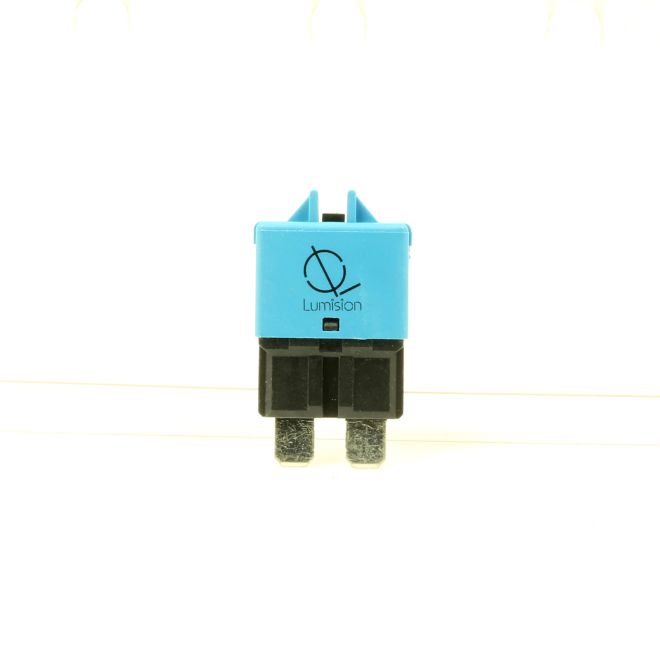

15A Resettable Automotive Fuse ATO ATC APR Breaker Type III Thermal
$7.99
1 x 15AMP Circuit Breaker Fuse in a poly sealed bag
1 x 15AMP Circuit Breaker Fuse in a poly sealed bag
15 AMP CIRCUIT BREAKER FUSE –
Standard ATO / ATC / APR circuit breakers are single pole thermal overload type devices. They can be used in many automotive, marine, and industrial applications. Breakers are ideal when space is limited and for replacing fuses on your critical accessories. Commonly considered a Type-3 Thermal Breaker, these can fit into most ATO / ATC / APR fuse panels. Each breaker is color-coded by amperage according to automotive industry standards.
Rated up to 28V DC
Tin-plated copper alloy terminals.
UL-Rated 94V-0 thermoplastic body
Operating temperature range: -40°F – 185°F (-40°C – 85°C)
Interrupt Rating: 2,000A at 28V DC
Meets SAE J553 and J1171 (ignition protected) specifications.
Size: 36(h) x 20(w) x 6(d) mm
| Weight | 2 oz |
|---|---|
| Dimensions | 6 × 4 × 1 in |
| Color | Blue |
| AMP | 15A |
