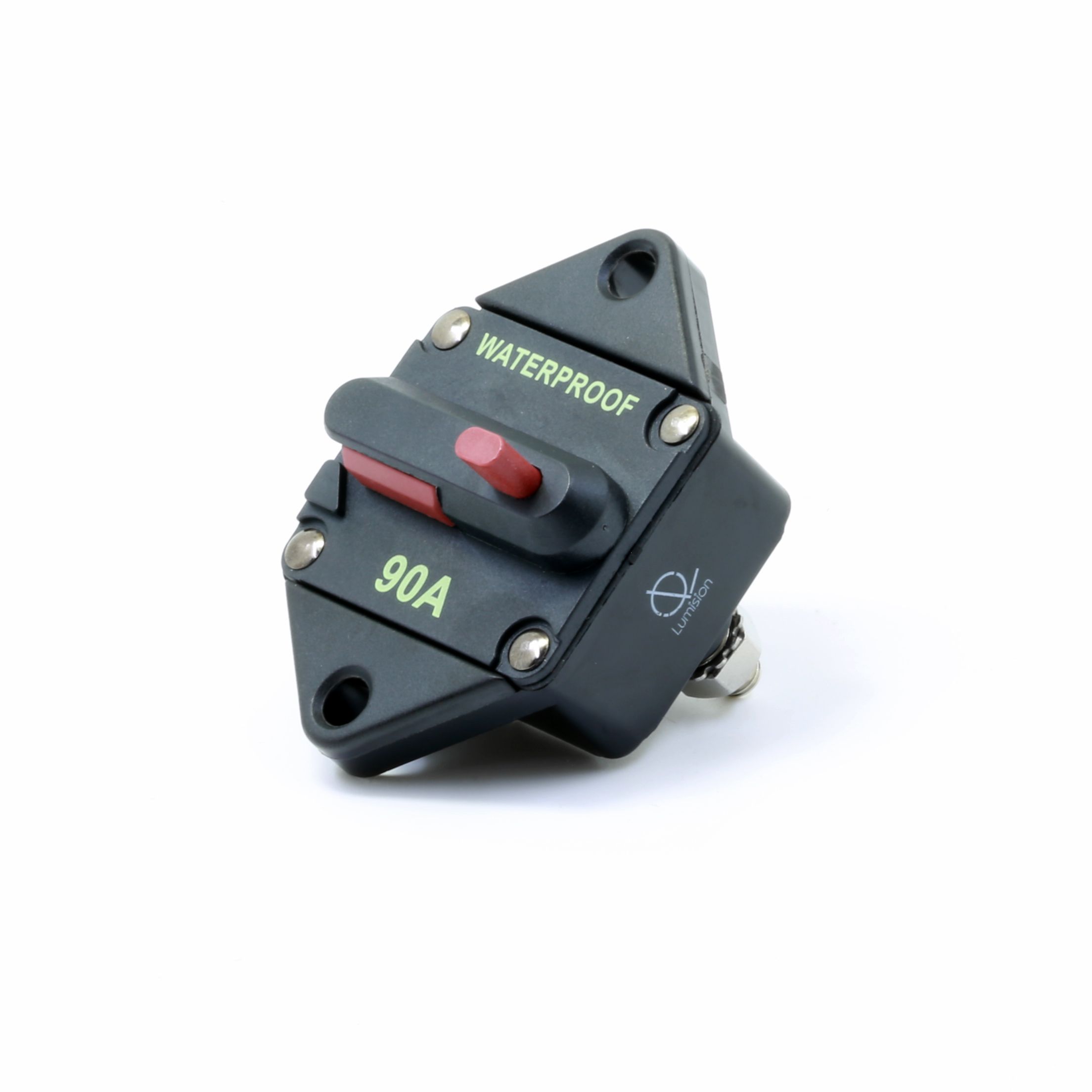

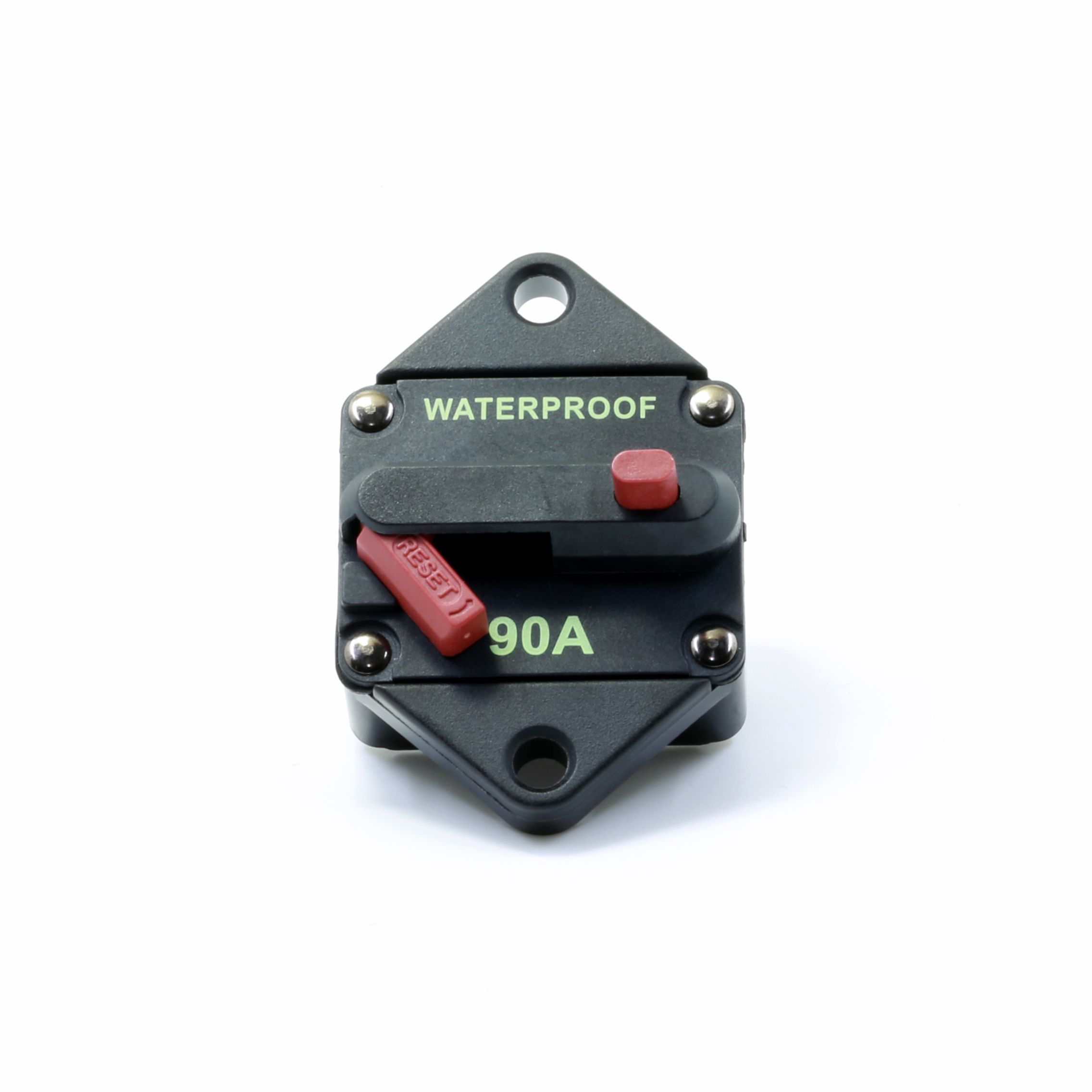

90A Waterproof DC Circuit Breaker Panel Mount 12-48VDC

$19.99

1 x Weather Proof, 12V to 48V DC 90AMP Automotive Circuit Breaker

Weather Proof, 12 to 48V DC 90AMP Automotive Circuit Breaker
Panel Mounting Leads Under the Housing
Interrupt Capacity: 3000A @ 30 Vdc Housing is thermal plastic UL rated 94-V0 Splash and dust proof at IP67 grade.
Operating Temperature: -32C to 82C (-25F to 180F).
Storage Temperature: -34C to 149C (-30F to 300F).
Stud Size: 1/4″-28 Meet S.A.E. J1625, J1171 (Ignition Protected).
Surface Mount, protective stud insulator included.

  • Meet S.A.E. J1625, J1171 (Ignition Protected)
  • Surface Mount, protective stud insulator included
  • Red manual reset button
  • Housing is thermal plastic UL rated 94-V0
  • Easy Installation, Manual Reset Circuit Breaker
  • Applications: Trucks, RV, Boats, Marine, Buses, Battery Charge, DC Audio Systems and More
Weight 2 oz
Dimensions 6 × 4 × 1 in
Color

Black
