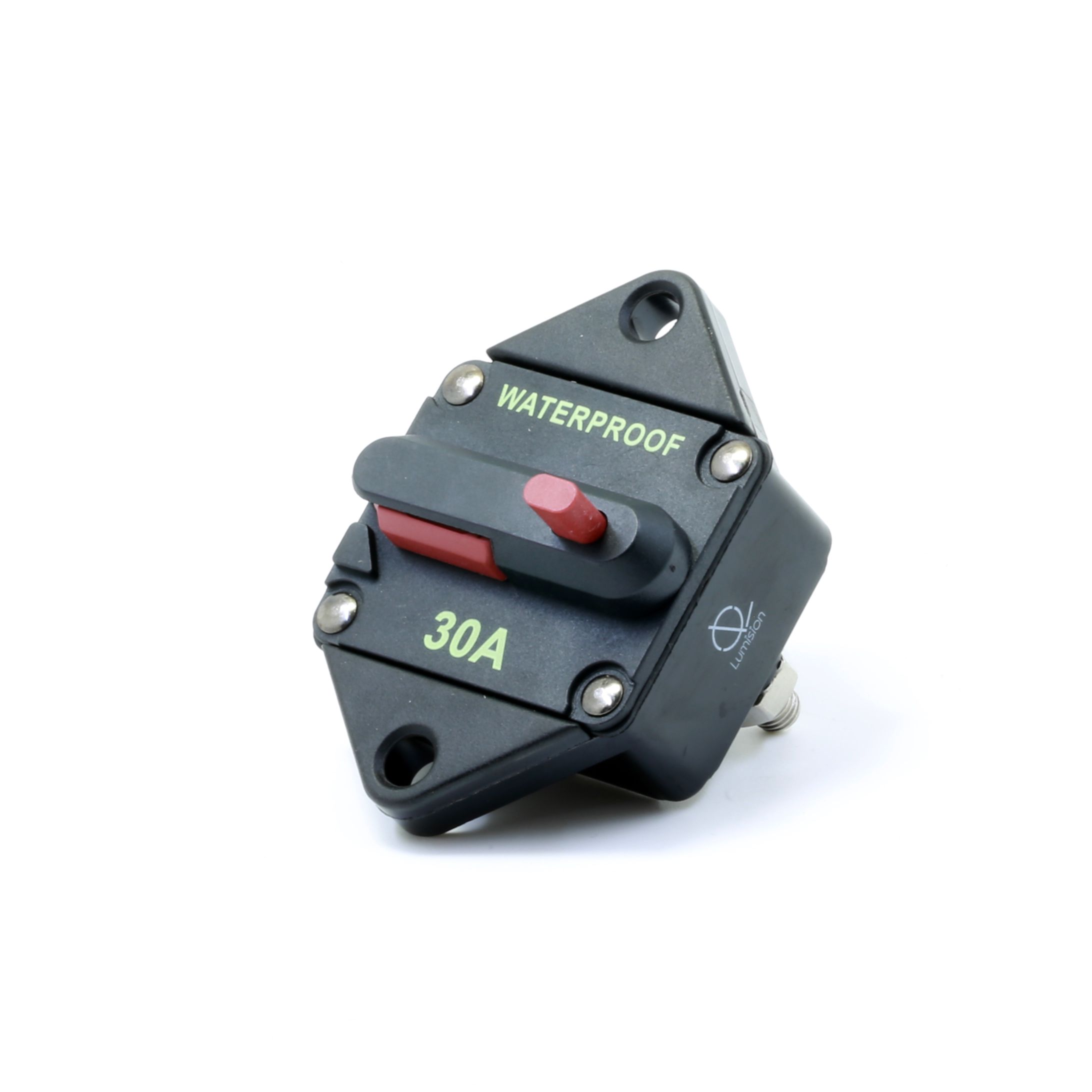

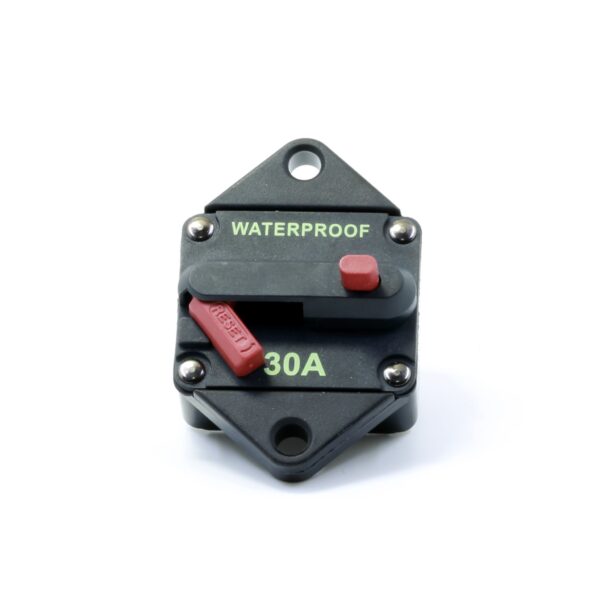

30A Waterproof DC Circuit Breaker Panel Mount 12-48VDC
1 x Weather Proof, 12V to 48V DC 30AMP Automotive Circuit Breaker
Weather Proof, 12 to 48V DC 30AMP Automotive Circuit Breaker
Panel Mounting Leads Under the Housing
Interrupt Capacity: 3000A @ 30 Vdc Housing is thermalplastic UL rated 94-V0 Splash and dust proof at IP67 grade.
Operating Temperature: -32C to 82C (-25F to 180F).
Storage Temperature: -34C to 149C (-30F to 300F).
Stud Size: 1/4″-28 Meet S.A.E. J1625, J1171 (Ignition Protected).
Surface Mount, protective stud insulator included.
- Meet S.A.E. J1625, J1171 (Ignition Protected)
- Surface Mount, protective stud insulator included
- Red manual reset button
- Housing is thermalplastic UL rated 94-V0
- Easy Installation, Manual Reset Circuit Breaker
- Applications: Trucks, RV, Boats, Marine, Buses, Battery Charge, DC Audio Systems and More
|Dimensions||6 × 4 × 1 in|
